Why an Air Horn?
Real starter pistols are loud, require blanks, and some schools/venues don’t allow them. Air horns give you a loud, distinct start signal without the hassle.
The problem: handheld air horns run out of air, and the cans are wasteful and expensive over time.
The solution: a battery-powered air horn built into a drill handle. One trigger pull, instant loud blast. Rechargeable. Lasts forever.
I’ve used this at dozens of meets—especially cross country where you’re less likely to hire a professional starter.
I’m Not Making a Video
There are plenty of great tutorials on YouTube already. Search “drill powered air horn” and you’ll find step-by-step builds:
YouTube: drill powered air horn
Instead, here’s my specific parts list and a few tips.
Parts List
| Item | Price | Link |
|---|---|---|
| 12V Cordless 3/8” Drill Kit (Harbor Freight) | ~$20 | Harbor Freight |
| 12V Air Horn (compact, all-in-one) | ~$26 | Amazon |
| Heat-shrink solder connectors | ~$9 | Amazon |
| Total | ~$55 |
Why this drill: Frequently on sale at Harbor Freight. Cheap, includes battery and charger.
Why this horn: The horns and compressor are all attached together. Other options (like the Harbor Freight 2-trumpet horn for $22) require separate mounting of the horn bells, which is trickier to install.
Basic Build Process
- Disassemble the two halves of the drill
- Remove the electric motor
- Remove the forward/reverse switch
- Use a hacksaw blade to cut the top off the drill (where the chuck was)
- Reassemble the drill handle
- Attach the air horn compressor body to the drill where the motor used to be
- Use zip ties, OR
- Use a large pipe clamp through the hole where the F/R switch was
- Connect the motor’s original wires to the air horn leads
- Heat-shrink solder connectors make this easy and waterproof
- Done — Pull the trigger, horn blasts
Tips
- Test polarity—if horn doesn’t work, swap the wires
- Secure the horn body well—it vibrates when it blasts
- Battery life is excellent—the horn only draws power for a split second per use
- Keep a spare battery—though one battery easily lasts a full meet

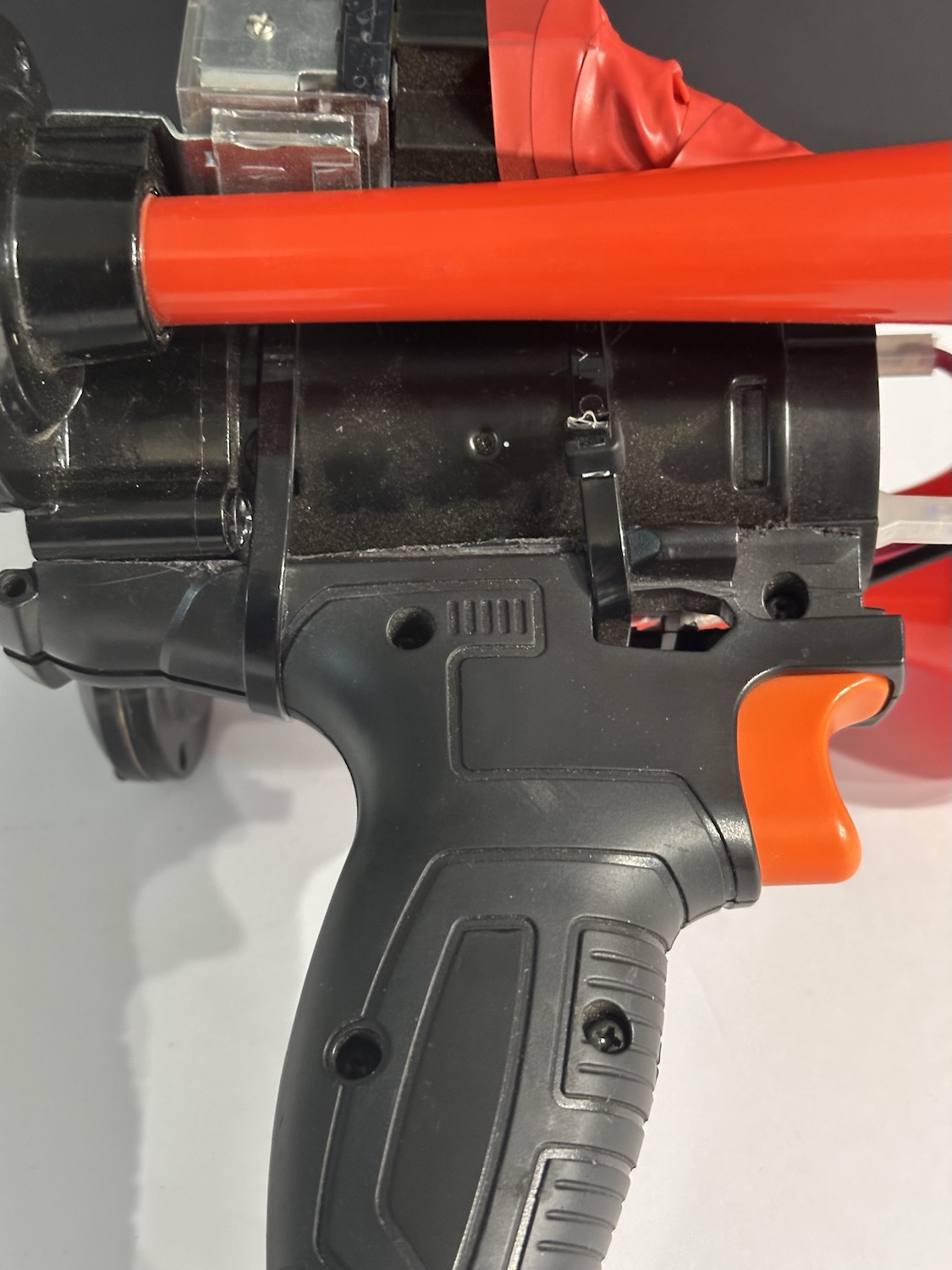

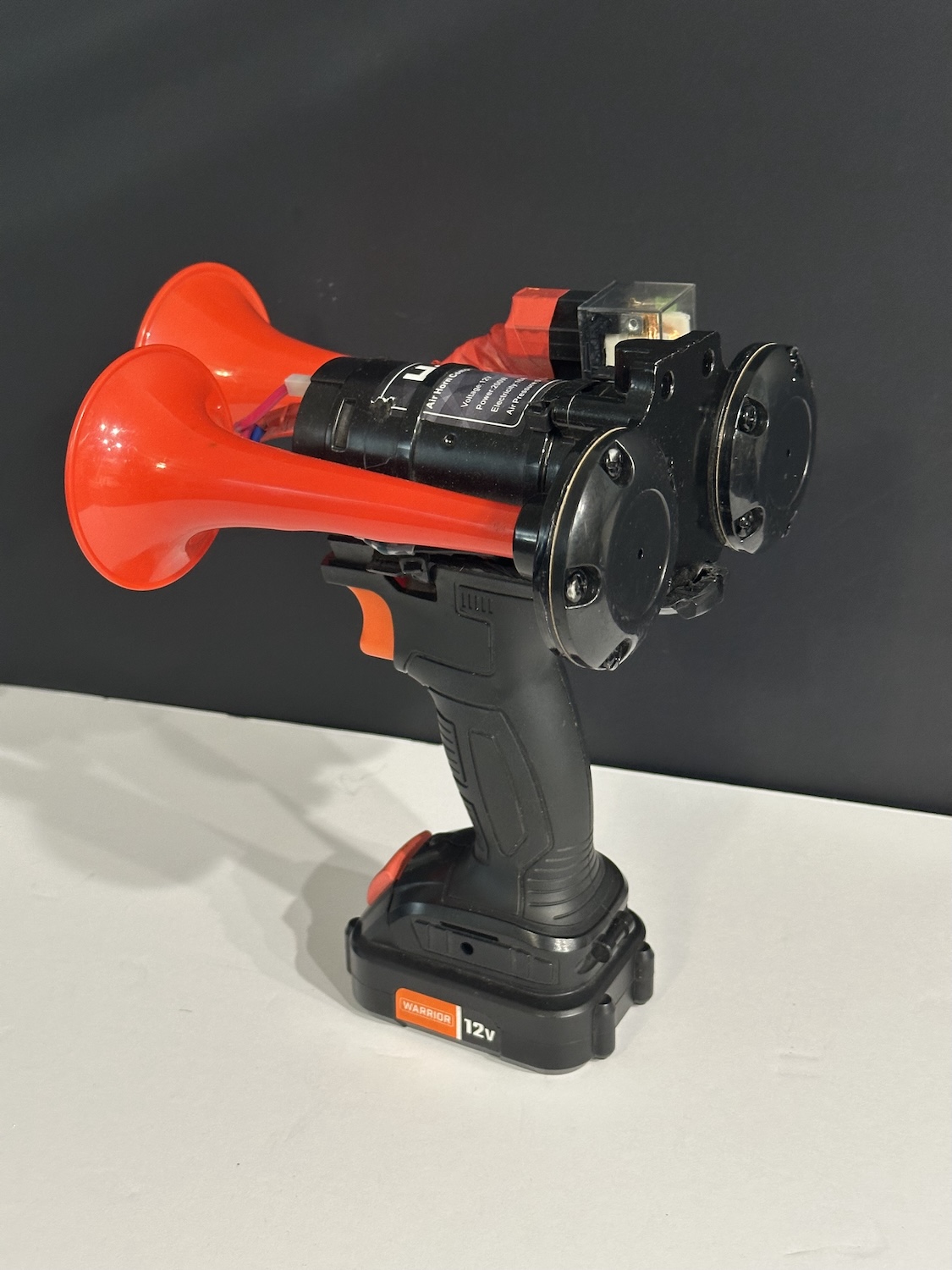

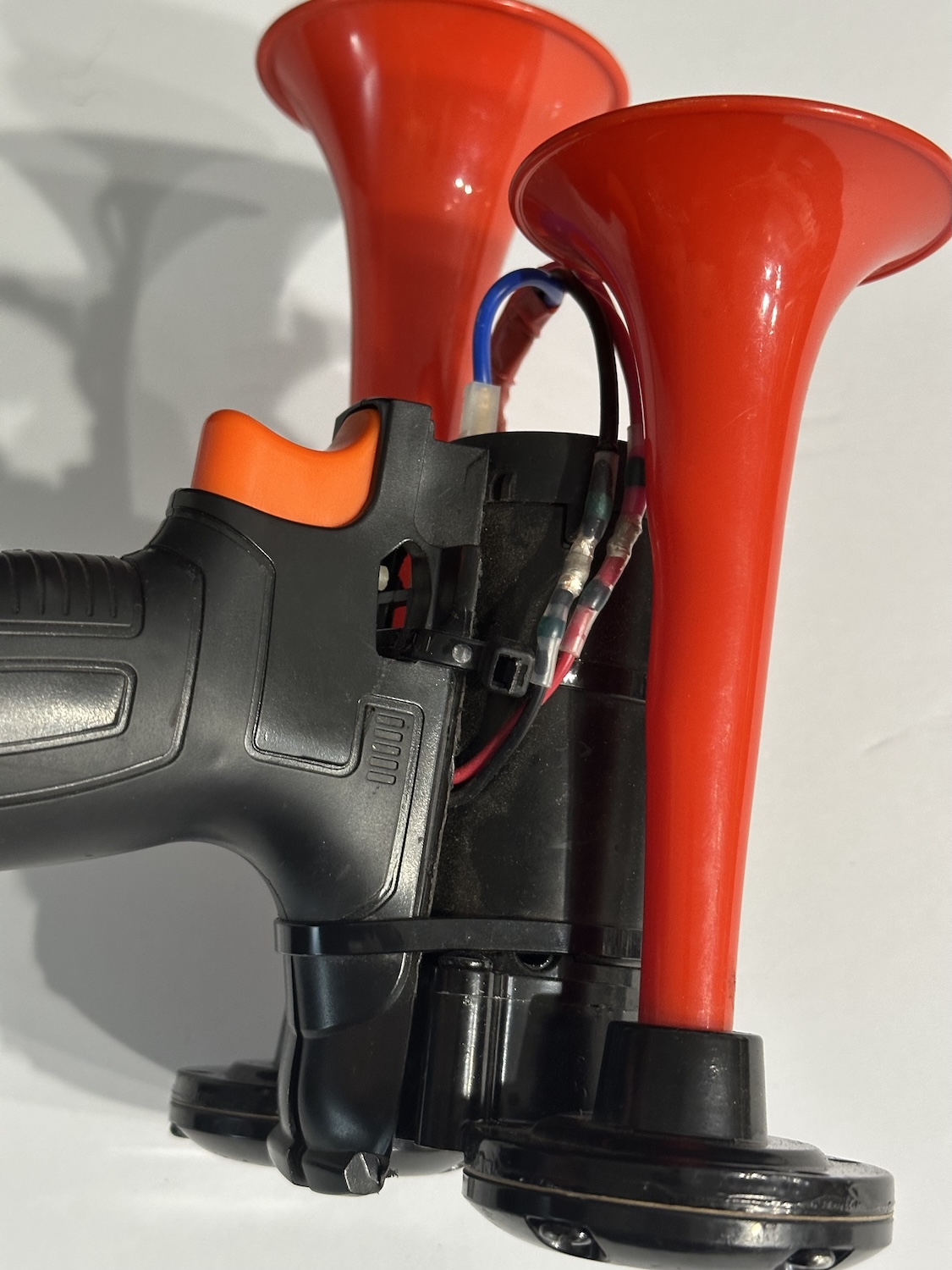

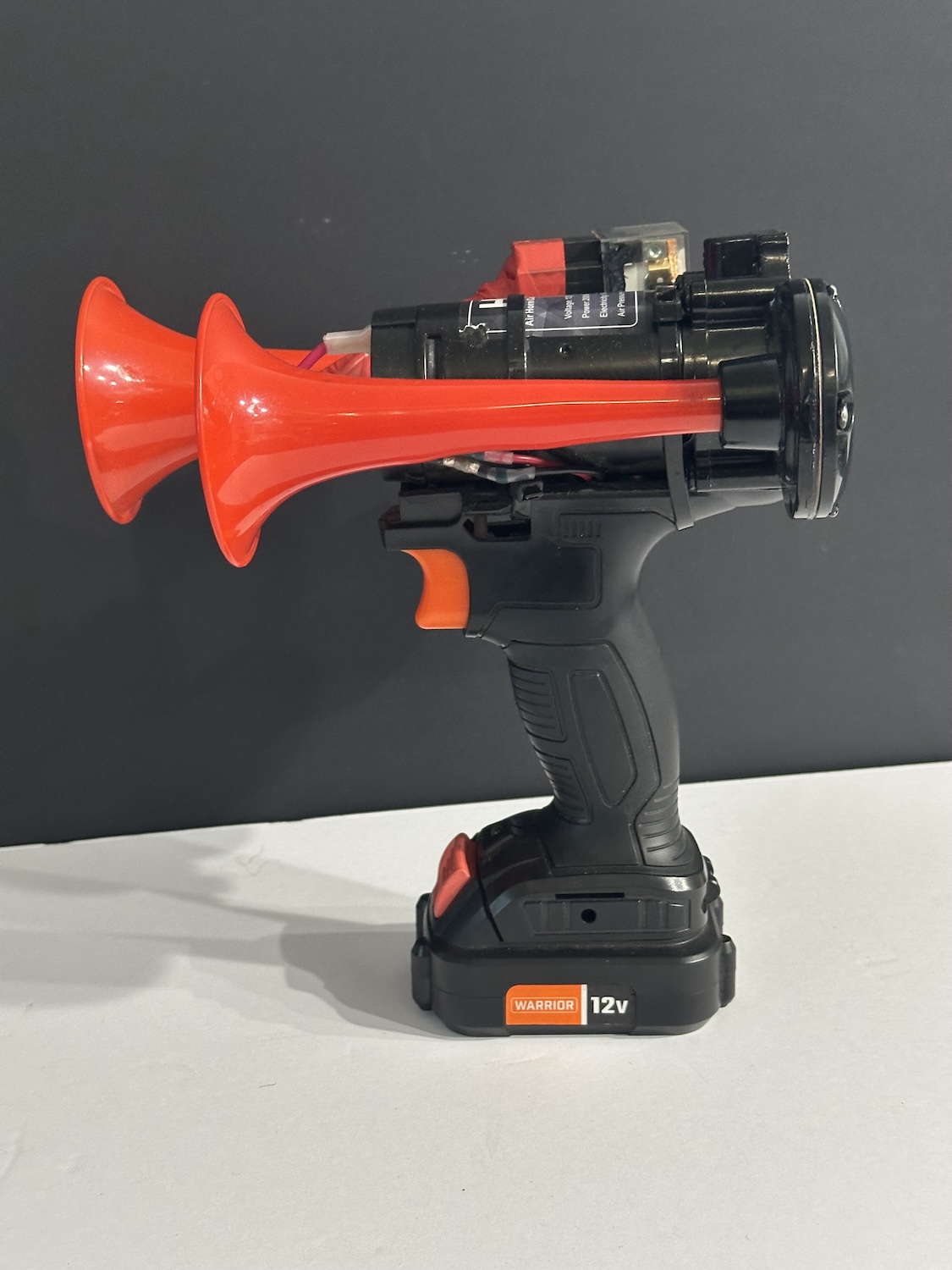

My build:
When to Use It
Great for: - Cross country starts (no power needed, very portable) - Outdoor track meets - Practice starts - Anywhere starter pistols aren’t allowed
Consider a real starter pistol for: - Championship meets with FAT timing that needs audio trigger - Meets where rules require a pistol
For RaceApp FAT timing, either works—the app detects the sound regardless of source, but the horn will need to blast right into the microphone.
